Inverters Universal Electronics

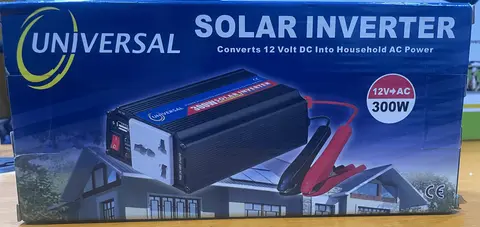

Universal 300W Portable Solar Power Inverter: 12V DC to Household 220V AC
The Universal 300 Watt Solar Inverter (P/No.: IV300-12) is a compact and essential tool for accessing 220V household AC power from any 12V DC source, such as a car battery or solar setup. Perfect for camping, road trips, off-grid applications, or emergency backup, this modified sine wave power converter allows you to charge and run small…
Request a quotation
Request a quotation and confirm the exact model, specifications and availability before ordering.
Direct Phone Call:
Key Features
- • Continuous Power: Provides 300 Watt of steady, reliable power (1.3A continuous output).
- • Peak Power: Handles a 600 Watt surge for 0.5 seconds to help start small devices.
- • Dual-Functionality: Features a 220V AC outlet and a dedicated USB Output (5.0V,1000mA) to charge phones, tablets, and other USB devices directly.
- • Modified Sine Wave: The Nominal Output Voltage is 220V∼ Modified Sine Wave at a crystal-controlled 50Hz.
- • Protection Built-In:
- • Low Battery Alarm/Shutdown: Alarms at 10.5V and shuts down at 10V (±0.5V) to protect your 12V battery from deep discharge.
- • Thermal Protection: Automatically shuts down if the temperature exceeds 65∘C (±5∘C).
- • High Efficiency: Operates with an impressive 85-90% Efficiency.
- • Plug-and-Play: Includes battery clips for quick and easy connection to your power source.
- • Check Polarity: BE SURE to check the polarity before connecting with power source. Connect RED (+) to positive and BLACK (-) to negative.
- • Environment: DO NOT place this unit in a high temperature environment.

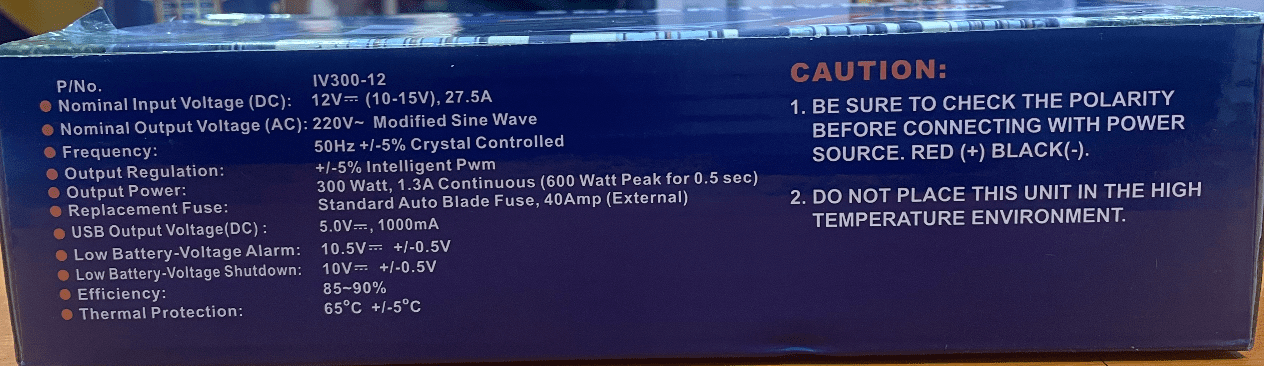

Catalog Specifications
| Specification | Parameter / Details |
|---|---|
| Specification | Details |
| Model | IV300-12 |
| Input Voltage (DC) | 12V (10-15V), 27.5A Max |
| Output Voltage (AC) | 220V∼ Modified Sine Wave |
| Continuous Output Power | 300W |
| Peak Output Power | 600W (for 0.5 sec) |
| USB Output | 5.0V, 1000mA |
| Replacement Fuse | Standard Auto Blade Fuse, 40Amp (External) |
Specifications come from the previous catalog. Please confirm the exact model details with us before ordering.
